Computer Servo Automatic Round Knife Cloth Garment Cutting Machine for Large Garment Factories

FOB Reference Price:Get Latest Price
$3,000.00 - $180,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
RZCRT5-9009-2H
Working Area:
9000 X 900mm
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Power(W):
2*9KW
Dimension(L*W*H):
9800 X 1500 X 1350MM
Weight:
2909kg
Warranty:
1 Year
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Applicable Industries:
Garment Shops, Manufacturing Plant
Condition:
New
Application:
Garment
Automatic Grade:
Automatic
Production Capacity:
5000 Sets/year
Place of Origin:
Guangdong, China
Brand Name:
RUIZHOU
Voltage:
220V/380V
Features:
Automatic Feeding System
Certification:
CE, ISO
Cutting Speed:
1200mm/s
Available Materials:
Garment, fabric, cloth, PU, apparel materials
Motor:
Servo motor
Available Thickness:
0.5mm - 50mm
Cutting Ways:
Oscillating knife cutting
Functions:
Cutting, drawing and punching
Cutting Size:
9000mm x 900mm
Fixing Method:
Divisional vacuum absorption
Compatible software/ files:
any file exported from any software in DXF/ PLT formats
Supply Ability
Supply Ability:
5000 Set/Sets per Year other cutting machines are also available
Packaging & Delivery
Packaging Details
THE CUTTING MACHINES ARE IN STANDARD EXPORT WOODEN CASE.
Port
FOSHAN, and any other port in China
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 To be negotiated



    Computer Servo Automatic Round Knife Cloth Garment Cutting Machine for Large Garment Factories





Product Description



RUIZHOU CNC Cutting machines are specially designed for soft material cutting, especially in cloth cutting.

The cloth cutting machines have been widely used in garment, clothing, apparel, textile and footwear areas.







 Characteristics of Cloth Cutting Machine.

1. Knife cutting, not by laser. So it causes no burning to the materials. No smell.

2. Accurate. oscillating knife, CNC computer control and servo motor, especially Ruizhou independent developed system enssure good cutting quality.

3. Saving. With Ruizhou automatic Nesting system, the material utilization can be improved by 5%.

4. Convenient. Both flatbed table and  auto conveyor table are optional. With auto feeding system, the convenience and efficiency improves a lot.

5. Compatible. Files in DXF and PLT formats are supported. And software which can export DXF or PLT files are compatible with this machine.

6. User friendly. Operation is easy. A free training can be offered.







Technical Parameter of Cloth Cutting Machine.



ModelRZCRT5-9009-2H (With Dual-Head)
Cutting speed0-1200mm/s
Applicable thickness0.5mm-25mm(can be up to 50mm according to the material thickness)
Vacuum pump working voltage2*9KW
Cutting MaterialsCloth, textile, fabric, PVC, PU,  etc.
ToolsOscillating cutting tool
Hobbing cutter, milling cutter, creasing wheel, punching tool. (optional)
Marking pen
Material fixing methodDivisional vacuum absorption
Mechanical resolution0.07mm
Software resolution0.025mm, 0.01mm, 0.1mm (optional)
Interface of transmissionNetwork port
Buffer CapabilityOnce fast transfer
Command systemHP-GL and GP-GL compatible formats
Digital Control PanelLiquid crystal display and touching button
Transimission MaterialsImported staight line guide track, synchronous belt
MotorServo motor
Cutting Blade RotateVibrational cutting head 18000r/min, milling spindle motor 4000-1000r/min
Machine Working VoltageAC 220V ± 10%, 50HZ
Air Pump working VoltageAC 380V ± 10%, 50 HZ





Tools and Functions

  The Tools and Functions of Cloth Cutting Machine.



The Tools and Functions Cloth Cutting Machine.



1. Oscillatin Cutting Tool

 It is fast, accurate and no burning nor smell.



2. Electric Rotary Tool

 It is more fast an low noise.







The Details Advantages of Cloth Cutting Machine.











Cutting Effect

1.Accurate

The cutting machine meets the cutting precision: 0.3mm to 0.5mm.



2.Smooth

The Oscillating Cutting Tool assures our cutting machines cut smoothly. And this cutting effects can hardly be done by laser cutting machine, die cutter or manual workers.



3. Delicacy

With our cutting machine for garment making, you can easily meet the market needs for customized cloth, garment or designs.



4.Multi-layer

This garment plotter can cut several layers materials, and very suitable for some customized production.







Client show



Now a lot of world famous firms are our partners. They are using Ruizhou cutting machines.






RUIZHOU requite her customers with sincerity. She wins the market with good services, build brand with good quality, strive for excellence with technology.

Over the past years, RUIZHOU has received trust and praise from our customers.

Our product sold to European, Korea, India, Mexico, Malaysia, Vietnam, Hong Kong and Taiwan.

The clients we have severed, at home and abroad, up to 5000 famous companies, including:

ST&SAT, BELLE, DAPHNE, NIKE, ADIDAS, Guangzhou Honda, Guangzhou TOYOTA, etc.



Customer Application



Packaging



  Packaging





Company Shows

Guangdong RUIZHOU Technology Co., Ltd is a national Torch Plan High-tech Enterprise, specialized in the research, development, sales and technique service of soft material intelligent CNC cutting machine.

RUIZHOU Technology has been dedicated in supplying informationized and automatic design and whole solution of intelligent production for a broad community of soft material manufacturers, which achieves  the realization of the confluence of informatization and industrialization.





1. More than 20 years history in CNC cutting technology;

2. The first and biggest CNC cutting machine manufacturer in China;

3. We focus on the research and development of CNC knife cutting technology and related CAD software over the past 20 years;

4. The quality and service are regarded as the life of our corporation;

5. We will never be satisfied until you are satisfied;

6.Ruizhou is based in Foshan, aiming at the global market.



Certficate



 CE, ISO

Utility model patent

Design Patent
Software copyright
TOP 10 Footware Machinery Enterprise,
TOP 10 Innovative Enterprise,
CTP(China Torch Plan) Key New High Technology Enterprise.

Foshan Institute of Supervision & Test on Product Quality, etc.



Fairs

  Fair

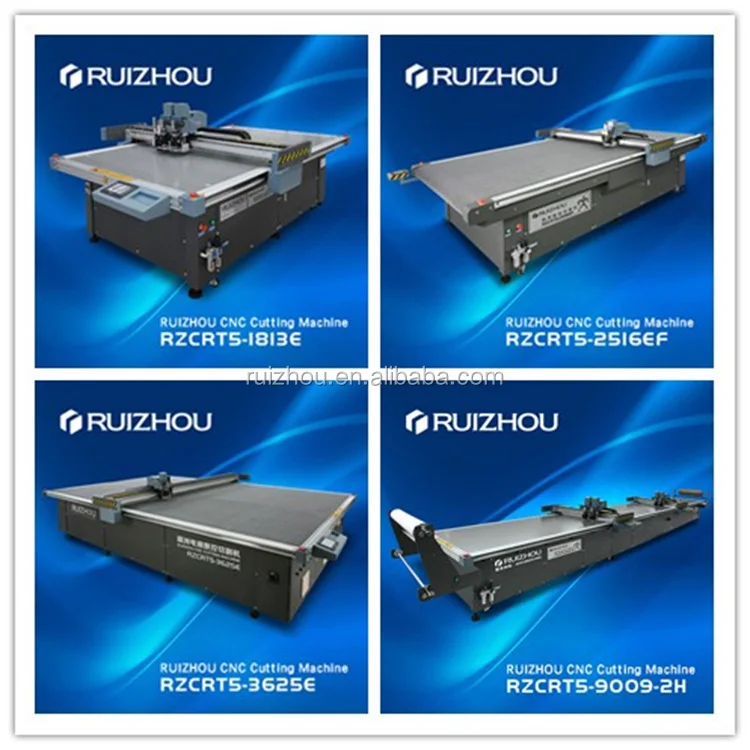

Products We Supply ________________________________________________________________

Three types of cutting machines and some software are available from RUIZHOU.



Related Products


Item NumberWorking Area
RZCRT5-1007E1000X700MM
RZCRT5-1510E1500X1000MM
RZCRT5-1813E1800X1300MM
RZCRT5-2516E2500X1600MM
RZCRT5-2516EF2500X1600MM
(with automatic feeding shelf)
RZCRT5-3016E3000X1600MM
RZCRT5-3016EF-2H3000X1600MM
(with double cutting head )
RZCRT5-3625E3600X2500MM
RZCRT5-3625EF-2H3600X2500MM
(with double cutting head )
RZCRT5-90099000X900MM
RZCRT5-9009-2H9000X900MM
(with double cutting head )
RZCRT5-12009-2H12000X900MM
(with double cutting head )
RZCRT5-12016-2H12000X1600M
(with double cutting head )
